Cross-Lattice Conveyor Chute

● Height: Customized on demand
● Rotation Angle: 90°
● Conveying Capacity: 20-100 kg/m²

Custom Gravity Chute Solutions for Material Handling

Cross-Lattice Conveyor Chute is a gravity conveying solution for parcel handling and sorting in logistics centers, warehouses, and distribution facilities. Compatible with cross-belt and narrow-belt sorting systems, it can be customized based on site requirements. The FRP version offers anti-magnetic properties, while carbon steel provides high strength and durability.

Product Features

1. Anti-Magnetic FRP Option

The FRP version provides anti-magnetic properties for applications where magnetic interference needs to be minimized
2. High-Strength Carbon Steel Option

The carbon steel version offers high structural strength and durability for demanding conveying applications

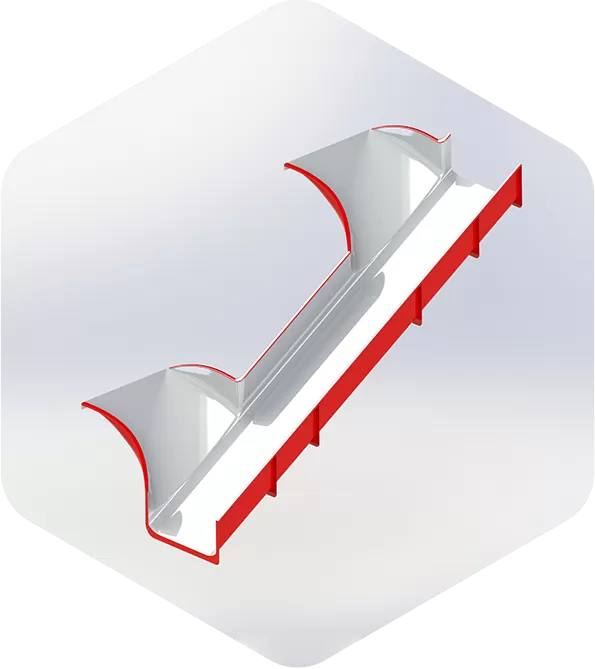

3. Cross-Lattice Design

The cross-lattice structure creates a compact and organized chute layout, supporting efficient use of available space
4. Multi-Entry Configuration

Multiple inlets allow parcels from different sorting points to enter the chute, simplifying the connection of multiple discharge points
5. Sorter Compatibility

Compatible with cross-belt and narrow-belt sorting systems, providing greater flexibility in system design and integration
6. Gravity-Powered Conveying

Moves parcels smoothly by gravity without additional power
7. Customized Dimensions

Chute dimensions, configuration, and connections can be customized according to project requirements
8. Easy Installation

Standardized spiral sections enable easy assembly and installation

Anti-Static

Wear-Resistant

Anti-Magnetic

Technology Company

Daily Chemicals

E-commerce

Logistics Industry

The self-driven chute is made of fiberglass, offering anti-magnetic and anti-static properties. It is widely used for efficient and stable material conveying in automated sorting systems.

Through intelligent wheel sorting, items of different SKUs are sorted and combined into single orders for delivery, significantly reducing manual labor.

In the scenario of cross-floor vertical transportation in the e-commerce industry, the self-powered chute is used to smoothly slide the goods from the high floor to the low floor

In the logistics industry, goods are always large and heavy. Our swivel wheel sorter features a multi-wheel structure and a large contact surface for stable and efficient handling of heavy items.
