Cross Belt Conveyor Chute
Cross With Lattice Conveyor Chute
Cross With Lattice Conveyor Chute
Composite material one molding production, smooth surface, anti-magnetic, anti-water, anti-static
High Drop Spiral Conveyor Chute
Cross-Type Double-Entry Spiral Conveyor Chute
Cross-Type Double-Entry Spiral Conveyor Chute
Multi-Entry Spiral Conveyor Chute
Multi-Entry Spiral Conveyor Chute
Single Entry Spiral Conveyor Chute
Single Entry Spiral Conveyor Chute
Double Entry Spiral Conveyor Chute
Composite material one molding production, smooth surface, anti-magnetic, anti-water, anti-static
Low Drop Conveyor Chute
Diamond Conveyor Chute
Composite material one molding production, smooth surface, anti-magnetic, anti-water, anti-static
Manual One Point Two Conveyor Chute
Composite material one molding production, smooth surface, anti-magnetic, anti-water, anti-static
Composite material one molding production, smooth surface, anti-magnetic, anti-water, anti-static
Gravity Chute is a type of equipment used for the gentle, efficient, and controlled movement of bulk materials or items from one level to another in a continuous, gravity-driven process.
It is commonly used in various industries, including logistics, warehousing, manufacturing, and food processing, where products need to be moved between different elevations without causing damage.
Gravity spiral chutes with composite material one molding production, smooth surface, anti-magnetic, anti-water, anti-static; Automatic sliding, can effectively reduce energy loss and damage of goods. A variety of continuous motion surfaces can realize automatic and safe transportation of goods in complex environments.
We are an experienced custom spiral chute supplier. Please contact us to customize a spiral chute for your application.
Gravity Conveyor Chute Features
1. 3D integrated molding process
Angle deviation < 1°, cargo transport 0 tumbling
2. Anti-magnetic anti-static
Good electrical insulation performance, friendly to 3C magnetic products
3. Super smooth
Nano-composite surface, roughness < Ra2.5
4. High space utilization
Support cargo transportation in complex environments such as small space and multiple entrances
5. Ultra-wear-resistant
Excellent quality of life ≥10 years
6. High hardness
New fiberglass matrix, standard bearing capacity 100KG/㎡
7. High weather resistance
No softening deformation in extreme environment, no flame, no burning
8. Easy installation
Flange installation mode, greatly reducing maintenance costs
Custom Gravity Conveyor Chutes Technical Parameters
| Category | Name | Length(mm) | Width(mm) | Conveyor Transition Section Height(mm) | Entrance width(mm) | Exit width(mm) | Inner width(mm) |
| Cross belt conveyor chute | Cross belt three entry grid conveyor chute | 7000 | 3550 | 8000-6750-5500-4100 | 1200 | 1050 | 1050 |
| Cross belt NC conveyor chute | 2200 | 1800 | 2600-500 | 860 | 860 | 860 | |
| Low drop conveyor spiral chute | Low drop conveyor chute | 2050/3340 | 2545 | 3100-1800/500 | 2000 | 1260 | 1260 |
| Manual one point two conveyor chute | 3420 | 2550 | 3100-1800/500 | 1000 | 1000 | 1000 | |
| Two in one conveyor chute | 3470 | 2550 | 3100-1800 | 2200 | 2200 | 1260 | |
| Diamond conveyor chute | 2050/3340 | 2545 | 3100-1800/500 | 2000 | 1260 | 1260 | |
| High drop conveyor spiral chute | Single entry large spiral chute | 3820 | 3420 | 5200-900 | 1260 | 1260 | 1260 |
| Double entrance large spiral chute | 3820 | 3420 | 5200/3000-900 | 2200 | 1260 | 1260 | |
| Three entrance large spiral chute | 3820 | 3420 | 7400/5200/3000-900 | 2200 | 1260 | 1260 | |
| Cross-type double-entry spiral conveyor chute | 3820 | 3240 | 9100/7800-2350/950 | 1460 | 1460 | 1460 |

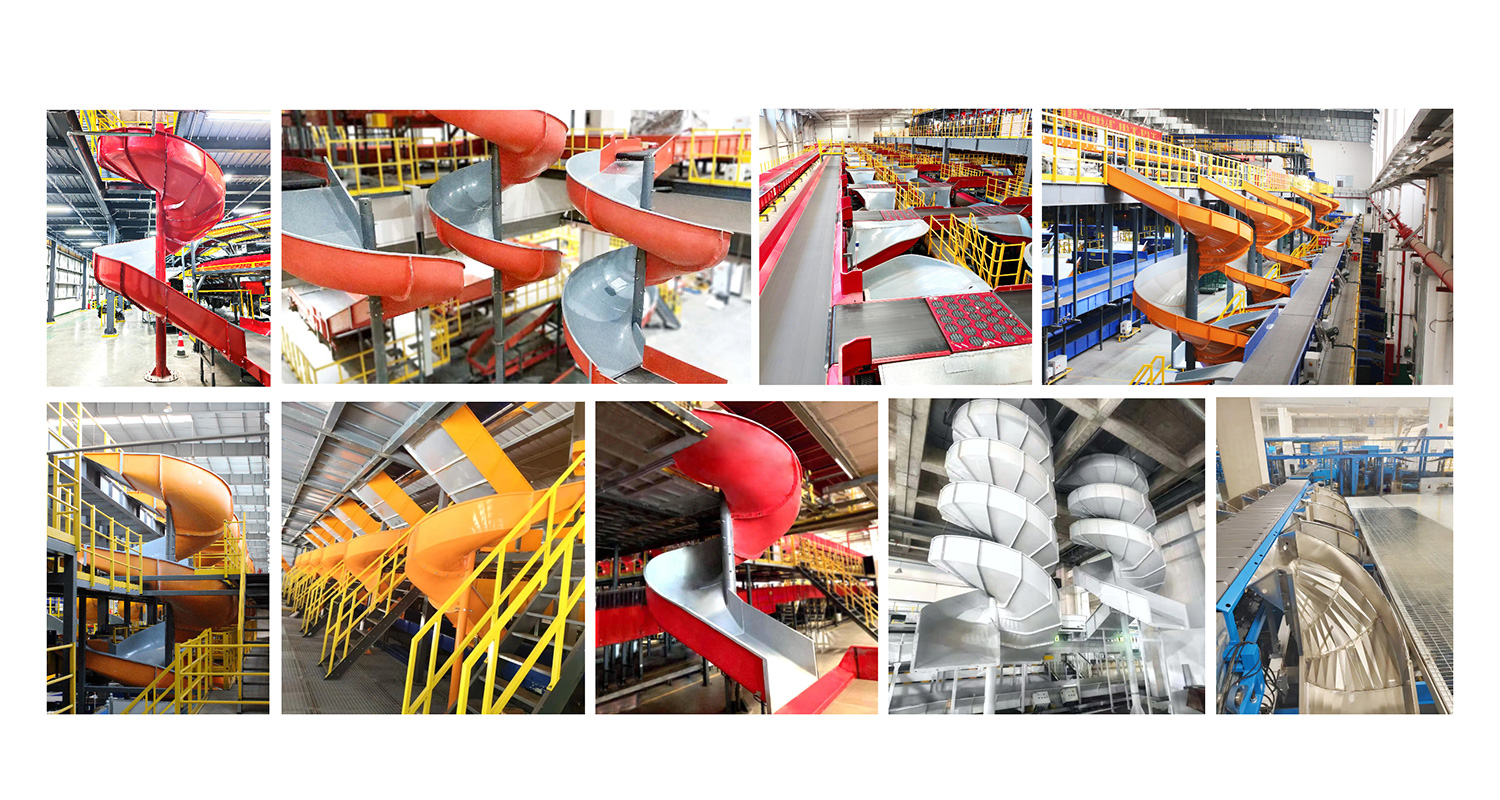

1. Single entry large spiral Scenario :
The food company uses a single inlet 270° large spiral chute tosafely transport nuts out of the warehouse.
2. Double entry large spiral Scenario :
The storage company uses a cross-type double-entry large spiralchute to transport goods safely.
3. Three entry large spiral Scenario :
The express company uses a three-entrance large spiral chute tosort and transport the express parcels, greatly saving the spaceof the site.
4. NC-chute(Non-criterion or Non-canonical) Scenario :
The cosmetics company uses a 180°NC spiral chute to removeabnormal parts.
5. One to two Scenario :
The express company uses a one-quarter chute to transportvarious packages.
6. Two into one Scenario :
Technology companies use automatic sorting combined chutes,combined with anti-static features, to transport electronicproducts without damage.
Whole Process Quality Inspection
The company has ISO9001 international quality system certification, strict testing process, from raw material warehousing, production process control to finished products out of the warehouse, each link is strictly quality control, to ensure that product quality meets national standards and customer requirements; Professional inspection team, team members have rich industry experience and professional skills, can accurately judge product quality problems, and put forward improvement measures in time; The company pays attention to the construction and improvement of quality management system, through continuous improvement and innovation, improve product quality level and production efficiency, to meet the increasing needs of customers.
